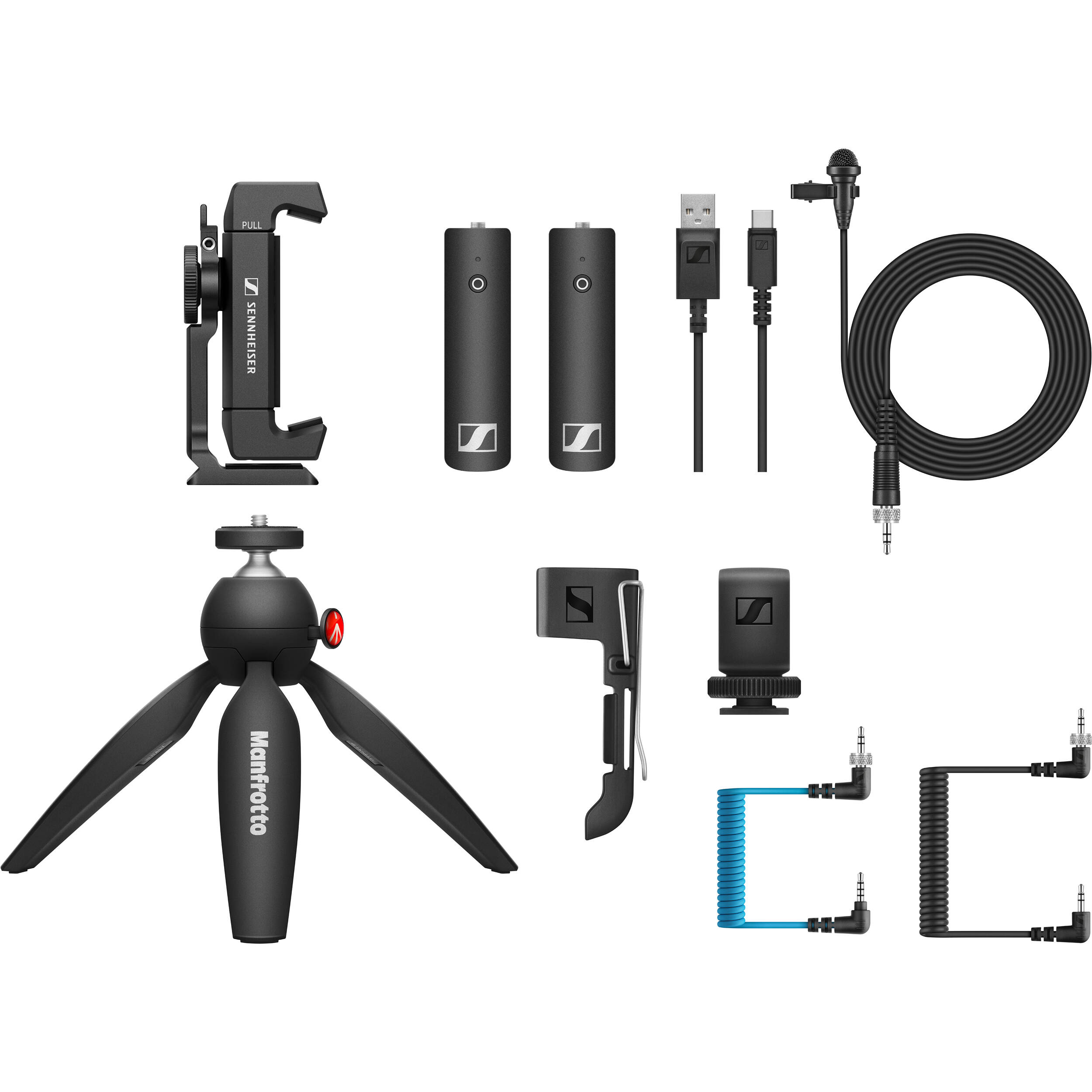

The XSW-D Portable Lav Mobile Kit combines functionality with efficiency for the ultimate vlogging experience. Upgrade your audio and your video with these three essential tools.
The XSW-D Portable Lavalier Set includes a one-touch ease-of-use wireless audio system that utilizes a digital transmission to seamlessly link audio sources. Equipped with our ME2-II omnidirectional lavalier microphone, this elegant solution makes capturing dialogue on a DSLR/M easier than ever before while maintaining a reliable connection.
Specifications:
Dimensions
XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
Connector
3.5 mm jack
Frequency response (Microphone)
50 to 18,000 Hz
Transducer principle (Microphone)
Pre-polarized condenser
Max. sound pressure level
130 dB SPL
THD, total harmonic distortion
< 0.1 %
Cable length
approx. 1.60 m
Weight
XSW-D MINI JACK TX: approx. 73 g
XSW-D MINI JACK RX: approx. 73 g
Charging time
typ. 3 h
Audio output
max. 12 dBu
Pick-up pattern
Super cardioid
Sensitivity in free field, no load (1kHz)
20 mV/Pa
Operating temperature
-10 °C to +55 °C (14 °F to 131 °F)
Signal-to-noise ratio
≥ 106 dB
Equivalent noise level
36 dB
Operating time
up to 5 h
Modulation
GFSK with TDMA
Codecs
aptX® Live
Frequency range
2,400 – 2,483.5MHz
Transmission power
max. 10 mW
Latency
< 4 ms
Charging voltage
typ. 5.0 V
Audio frequency response
3.5 mm Jack/XLR: 80 – 18,000 Hz
6.3 mm Jack: 10 – 18,000 Hz
7
| Brend | Sennheiser |
|---|---|
| Dužina | 86 mm |
| Širina | 24 mm |
| Visina | 28 mm |
